Function Layers

The function of the knobs an faders can be changed by switching layers. Pressing one of the REC ARM buttons, activates a different layer. Each layer corresponds to a section of develop parameters in Lightroom. Using the tabs below will reveal a table for each layer.

Note that not all controls are always mapped to a function. And in layer 5, all knobs and faders have no effect. In this layer, you can change the controllers without affecting Lightroom parameters. You can use this for example when you have just moved a fader to the end and want to start from the middle with a different photo.

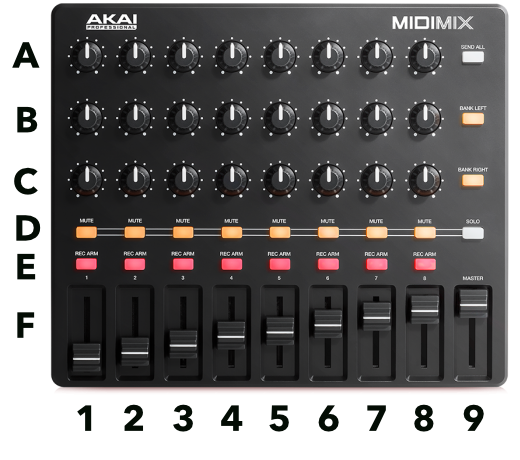

Icon
Layer 1
123456789
ATemperatureTintLuminance SmoothingLuminance Noise Reduction DetailLuminance Noise Reduction ContrastColor Noise ReductionColor Noise Reduction DetailColor Noise Reduction Smoothness
BTemp. Fine AdjustmentSharpnessSharpen RadiusSharpen DetailSharpen Edge MaskingPrevious Photo
CParametric DarksParametric LightsParametric ShadowsParametric HighlightsParametric Shadow SplitParametric Midtone SplitParametric Highlight SplitNext Photo
DToggle RejectToggle PickDecrease RatingIncrease RatingCopy All Develop ParametersPaste All Develop ParametersReset Last Develop ParameterUndoToggle Develop
ESelect Layer 1Select Layer 2Select Layer 3Select Layer 4Select Layer 5Before/After HorizontalBefore/After VerticalToggle Pickup Mode
FContrastHighlightsShadowsWhitesBlacksClarityVibranceSaturationExposure
Layer 2
123456789
ASaturation Adjustment RedSaturation Adjustment OrangeSaturation Adjustment YellowSaturation Adjustment GreenSaturation Adjustment AquaSaturation Adjustment BlueSaturation Adjustment PurpleSaturation Adjustment Magenta
BHue Adjustment RedHue Adjustment OrangeHue Adjustment YellowHue Adjustment GreenHue Adjustment AquaHue Adjustment BlueHue Adjustment PurpleHue Adjustment MagentaPrevious Photo
CLuminance Adjustment RedLuminance Adjustment OrangeLuminance Adjustment YellowLuminance Adjustment GreenLuminance Adjustment AquaLuminance Adjustment BlueLuminance Adjustment PurpleLuminance Adjustment MagentaNext Photo
DToggle RejectToggle PickDecrease RatingIncrease RatingCopy All Develop ParametersPaste All Develop ParametersReset Last Develop ParameterUndoToggle Develop
ESelect Layer 1Select Layer 2Select Layer 3Select Layer 4Select Layer 5Before/After HorizontalBefore/After VerticalToggle Pickup Mode
FGray Mixer RedGray Mixer OrangeGray Mixer YellowGray Mixer GreenGray Mixer AquaGray Mixer BlueGray Mixer PurpleGray Mixer MagentaExposure
Layer 3
123456789
ASaturation Adjustment RedSaturation Adjustment OrangeSaturation Adjustment YellowSaturation Adjustment GreenSaturation Adjustment AquaSaturation Adjustment BlueSaturation Adjustment PurpleSaturation Adjustment Magenta
BHue Adjustment RedHue Adjustment OrangeHue Adjustment YellowHue Adjustment GreenHue Adjustment AquaHue Adjustment BlueHue Adjustment PurpleHue Adjustment MagentaPrevious Photo
CLuminance Adjustment RedLuminance Adjustment OrangeLuminance Adjustment YellowLuminance Adjustment GreenLuminance Adjustment AquaLuminance Adjustment BlueLuminance Adjustment PurpleLuminance Adjustment MagentaNext Photo
DToggle RejectToggle PickDecrease RatingIncrease RatingCopy All Develop ParametersPaste All Develop ParametersReset Last Develop ParameterUndoToggle Develop
ESelect Layer 1Select Layer 2Select Layer 3Select Layer 4Select Layer 5Before/After HorizontalBefore/After VerticalToggle Pickup Mode
FContrastHighlightsShadowsWhitesBlacksClarityVibranceSaturationExposure
Layer 4
123456789
AGrain AmountSplit Toning Shadow HueSplit Toning Highlight HueSplit Toning Balance
BGrain SizeSplit Toning Shadow SaturationSplit Toning Highlight SaturationPrevious Photo
CGrain FrequencyDistortionVertical PerspectiveHorizontal PerspectivePerspective RotateScaleAspect RatioNext Photo
DToggle RejectToggle PickDecrease RatingIncrease RatingCopy All Develop ParametersPaste All Develop ParametersReset Last Develop ParameterUndoToggle Develop
ESelect Layer 1Select Layer 2Select Layer 3Select Layer 4Select Layer 5Before/After HorizontalBefore/After VerticalToggle Pickup Mode
FPost Crop Vignette AmountPost Crop Vignette MidpointPost Crop Vignette RoundnessPost Crop Vignette FeatherPost Crop Vignette Highlight ContrastDehaze
Layer 5
123456789
A
BPrevious Photo
CNext Photo
DToggle RejectToggle PickDecrease RatingIncrease RatingCopy All Develop ParametersPaste All Develop ParametersReset Last Develop ParameterUndoToggle Develop
ESelect Layer 1Select Layer 2Select Layer 3Select Layer 4Select Layer 5Before/After HorizontalBefore/After VerticalToggle Pickup Mode
F

Tool Mode

When you use the Graduated Filter tool, the Radial Filter tool or the Adjustment Brush, the knobs and faders control the tool parameters. Start with selecting the tool and click in the image to position it. Now you can control the tool parameters with the knobs and faders.

Layer 5
123456789
ATool TemperatureTool TintTool Luminance Noise
BStraighten AngleTool SharpnessTool Moire
CTool Defringe
FTool ContrastTool HighlightsTool ShadowsTool ClarityTool DehazeTool SaturationTool Exposure

Function Details

Most functions are tied directly to a Lightroom parameter or function. But some have a function specific for the LrControl plug-in.
