Using the X-Touch Compact with LrControl

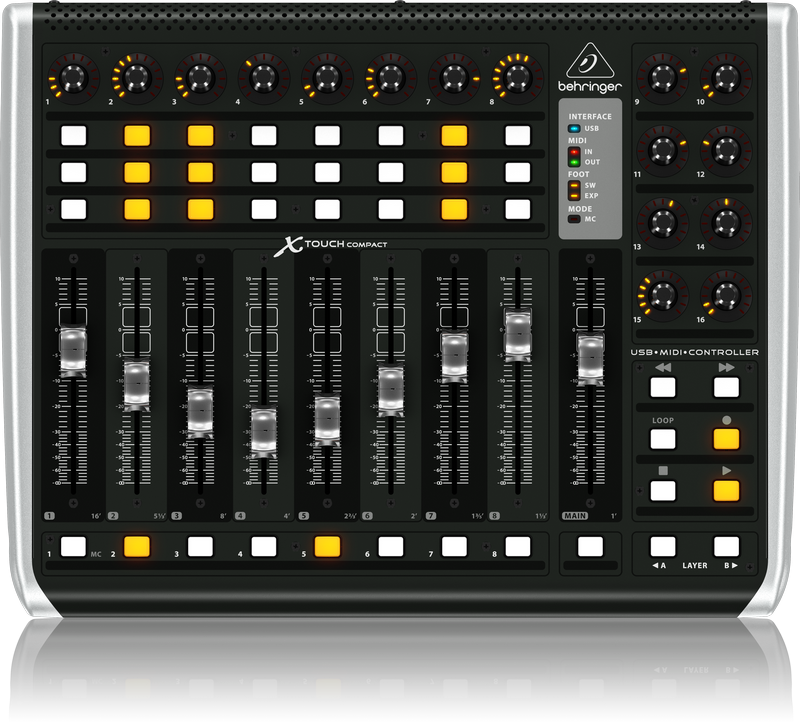

LrControl supports the X-Touch Compact with the device default settings. So after you have installed LrControl, you can just take it out of the box, plug it in and it will work with LrControl. Use LAYER A on the device, press the button above A in the lower right corner.

Layers

The function of the encoders and faders can be changed using layers. Each layer defines the meaning of each fader and encoder.

The LrControl layers are selected using the bottom row of buttons, just below the faders.. The button corresponding to the selected layer will light up.


Buttons

Encoder PushFunction
A1Select Layer 1
A2Select Layer 2
A3Select Layer 3
A4Select Layer 4
A5Select Layer 5
A6Select Layer 6
A7Select Layer 7
A8Select Layer 8
A9
A10
A11
A12
A13
A14
A15
A16
ButtonFunction
B1Toggle Reject
B2Toggle Pick
B3Set Rating 1
B4Set Rating 2
B5Set Rating 3
B6Set Rating 4
B7Set Rating 5
B8Edit in Photoshop
ButtonFunction
C1Toggle Zoom
C2Zoom Out Some
C3Zoom In Some
C4Export Previous
C5New Snapshot
C6Before View
C7Before/After Horizontal
C8Before/After Vertical
ButtonFunction
D1Reset Last Develop Parameter
D2Next Screen Mode
D3Toggle All Panels
D4Toggle Dim Lights
D5Auto White Balance
D6Auto Tone
D7Escape Key
D8Return Key
ButtonFunction
F1Select Layer 1
F2Select Layer 2
F3Select Layer 3
F4Select Layer 4
F5Select Layer 5
F6Toggle All Panels
F7Toggle Full Screen Preview
F8Redo
F9Undo
ButtonFunction
G1Previous Photo
G2Next Photo
G3Next Light Mode
G4Toggle Develop
G5Reset All Develop Adjustments
G6Paste Settings from Previous
Icon

Encoders and Faders

Layer 1
1 / 92 / 103 / 114 / 125 / 136 / 147 / 158 / 169
A 1-8TemperatureTemp. Fine AdjustmentTintSaturationSharpnessSharpen RadiusSharpen DetailSharpen Edge Masking
A 9-16Luminance SmoothingLuminance Noise Reduction DetailLuminance Noise Reduction ContrastColor Noise ReductionColor Noise Reduction DetailColor Noise Reduction SmoothnessStraighten Angle
EExposureContrastHighlightsShadowsWhitesBlacksClarityVibranceDehaze
Layer 2
1 / 92 / 103 / 114 / 125 / 136 / 147 / 158 / 169
A 1-8Parametric Shadow SplitParametric Midtone SplitParametric Highlight SplitParametric HighlightsParametric LightsParametric DarksParametric Shadows
A 9-16
EPost Crop Vignette AmountPost Crop Vignette MidpointPost Crop Vignette RoundnessPost Crop Vignette FeatherPost Crop Vignette Highlight ContrastGrain AmountGrain SizeGrain Frequency
Layer 3
1 / 92 / 103 / 114 / 125 / 136 / 147 / 158 / 169
A 1-8Hue Adjustment RedHue Adjustment OrangeHue Adjustment YellowHue Adjustment GreenHue Adjustment AquaHue Adjustment BlueHue Adjustment PurpleHue Adjustment Magenta
A 9-16Saturation Adjustment RedSaturation Adjustment OrangeSaturation Adjustment YellowSaturation Adjustment GreenSaturation Adjustment AquaSaturation Adjustment BlueSaturation Adjustment PurpleSaturation Adjustment Magenta
ELuminance Adjustment RedLuminance Adjustment OrangeLuminance Adjustment YellowLuminance Adjustment GreenLuminance Adjustment AquaLuminance Adjustment BlueLuminance Adjustment PurpleLuminance Adjustment Magenta
Layer 4
1 / 92 / 103 / 114 / 125 / 136 / 147 / 158 / 169
A 1-8Color Noise Reduction SmoothnessGrain AmountGrain SizeGrain Frequency
A 9-16Split Toning Shadow HueSplit Toning Shadow SaturationSplit Toning Highlight HueSplit Toning Highlight SaturationSplit Toning Balance
ESharpnessSharpen RadiusSharpen DetailSharpen Edge MaskingLuminance SmoothingLuminance Noise Reduction DetailLuminance Noise Reduction ContrastColor Noise ReductionColor Noise Reduction Detail
Layer 5
1 / 92 / 103 / 114 / 125 / 136 / 147 / 158 / 169
A 1-8
A 9-16
EGray Mixer RedGray Mixer OrangeGray Mixer YellowGray Mixer GreenGray Mixer AquaGray Mixer BlueGray Mixer PurpleGray Mixer Magenta
Layer 6
1 / 92 / 103 / 114 / 125 / 136 / 147 / 158 / 169
A 1-8
A 9-16
E
Layer 7
1 / 92 / 103 / 114 / 125 / 136 / 147 / 158 / 169
A 1-8
A 9-16
E
Layer 8
1 / 92 / 103 / 114 / 125 / 136 / 147 / 158 / 169
A 1-8
A 9-16
E

Tool Mode

When you use the Graduated Filter tool, the Radial Filter tool or the Adjustment Brush, the faders control the tool parameters. Start with selecting the tool and click in the image to position it. Then use the Sync button F1 on the BCF2000, to adjust the sliders to the correct position. Now you can control the tool parameters with the faders. When you are done with the tool, press the Sync button F1 again.

123456789
ATool TemperatureStraighten AngleTool TintTool SaturationTool SharpnessTool Luminance NoiseTool MoireTool Defringe
ETool ExposureTool ContrastTool HighlightsTool ShadowsTool ClarityTool Dehaze

Function Details

Most functions are tied directly to a Lightroom parameter or function. But some have a function specific for the LrControl plug-in.

Factory Reset

When you have bought a new device, you can just plug it in and LrControl should work. If you notice that you get unexpected results, you should try a factory reset. After a factory reset, the device should work again.

To do a factory reset follow the following steps:

  1. Turn the power off, with the switch on the back of the controller.
  2. Press and hold both LAYER buttons, A and B.
  3. Power on the device while still keeping down the two layer buttons.
  4. Keep holding down the buttons for a few seconds, the buttons will flash a few times.
  5. When only the layer A button is illuminated, the reset is complete. Release the buttons.
